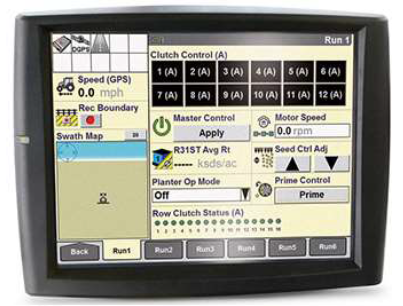

INCOMMAND

1200INCOMMAND™ 1200 is the flagship of the Incommand line, built on ag leader’s industry leading precision ag display technology. With Incommand 1200, you get year-round efficient machine control plus instantaneous information to simplify crucial decisions that impact your yield and profitability. See vital information in the tractor cab to help you manage machine functionality and react on-the-go to changing field conditions. Plus, take your field data and maps with you on your tablet when you leave the cab!

HIGHLIGHTS:

• Tablet-like interaction

• Touch and go homescreen apps

• Split screen view

• Row by row mapping

• Integrated lightbar

• Advanced planter control

• Year-round functionality

• Isobus/universal terminal/task controller

• Wifi adapter included

• Syncs data, maps with ipad using agfiniti mobile


COMPASS

The compass display offers integrated onscreen guidance to increase accuracy and extend working hours. Additionally, the compass display supports the most common and advanced guidance patterns, including Smartpath™.

KEY FEATURES:

• Compact design with built-in lightbar

• 7-inch color touchscreen

• Built-in manual guidance

• Combine with Ontrac3™ assisted steering or Steercommand™ with GPS 6500 integrated steering system for high-end guidance

• Compatibility with ISO 11783 virtual terminal standard

• Fullscreen mapping

• Multiple language options


INTELLIVIEW IV

ONE DISPLAY, ONE INTEGRATED SOLUTION INTELLIVIEW™ IV COLOR TOUCHSCREEN DISPLAY

The Intelliview™ IV display is an intuitive, color touchscreen display that can be factory-integrated in numerous models of new holland equipment. It has full isobus compatibility and can be used to both control key vehicle functions and run precision applications, such as Intellisteer™ auto guidance, as applied mapping and implement control of mixed fleets of equipment.

USER INTERFACE:

• Fingertip adjustment of all key settings

• Customize run screens to operator’s preference

• Single display for controlling machine functions and controlling precision applications

• Common display that is used in new holland high horsepower tractors, combines, forage harvesters, sprayers and windrowers.

IMPLEMENT CONTROL

• Control mixed fleets of both isobus and non-isobus implements

• Variable rate application

• Automatic section control

• Monitor and record planter population rates

• Control material applications including liquid and NH3

• Compatible with PLM™ isobus task controller and PLM™ intellirate control system


HARVESTING

• Yield monitoring and moisture sensing for new holland combines and forage harvesters


HARDWARE

• Integrated 10.4 inch color touchscreen display

• 3 video inputs for camera

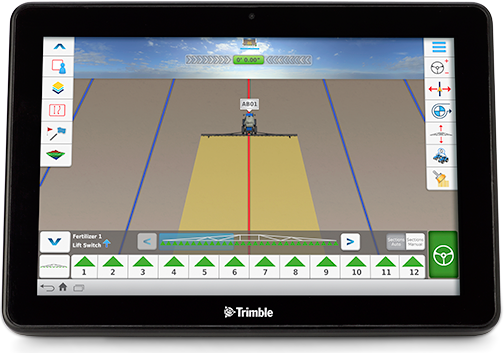

XCN-2050

CONTROL

CHOOSE PRECISION.

LEAVE NOTHING TO CHANCE.

You don't just work for yourself. You work to provide for your family, your community, and to feed your nation. You work hard. And smart. The Trimble® TMX-2050™ display lets you work even smarter. Take control of your entire operation with a system that gives you the clarity, certainty, and connectivity you need. Because your business is too important to leave to chance.

CLARITY

SAY HELLO TO HIGH-DEFINITION FIELD MANAGEMENT.

In the middle of a busy season, the last thing you need is a complicated interface. Built on the android™ operating system, the flexible platform lets you choose the application you want to use based on the work you need to do today—FMX® plus or Precision-IQ™. The fmx plus app leverages the same familiar workflows and menus of the trimble fmx integrated display so there's no need to retrain or learn new software. The precisioniq app provides a graphics-rich and streamlined workflow designed specially on the TMX-2050™ display and for today's leading grower. View different mapping layers, such as variable rate application, speed, and gps quality overlaid on background map imagery. Manage your field directly from the display with the field manager view, showing fields, ab lines, and boundary information all in one easy-to-access screen.

CERTAINTY

AUTOMATED ACCURACY MEASURED WITH THE GREATEST PRECISION AVAILABLE.

You’d never settle for just good enough. Trimble correction services lead the industry in accuracy and reliability while they maximize every pass and increase your efficiency. Our Centerpoint® RTX™ correction service enables precise 1.5" (3.8 cm) pass-to-pass and repeatable accuracy, while our rangepoint™ RTX correction service provides 6" (15 cm) pass-to-pass accuracy and 20" (50 cm) repeatable accuracy. Our Xfill™ technology also allows rtk users to continue receiving precision location data in the event of temporary radio or internet outages. Xfill employs satellite-based rtx technology to "fill-in" so you can experience more in-field run time with fewer interruptions.

CONNECTIVITY

MANAGE YOUR WHOLE FARM DIRECTLY FROM THE CAB WITH THE TMX-2050 AND CONNECTED FARM.

You manage every section, every row, every seed on your farm. The TMX-2050™ display provides instant access to the suite of Connected Farm™ apps to help you visualize all that data and your on-site operations directly from the machine cab. Make practical decisions in real time with your operational data at your fingertips. Connected farm manages data in the cloud, eliminating the need for usb storage, with faster access to your information from anywhere. Transfer guidance lines and maps from the office to the field seamlessly, and from vehicle to vehicle using wireless technology.

OVERVIEW

TECHNICAL OVERVIEW

• Large 12.1" (30.8 cm) high-definition color touch-screen display

• Android-based operating system allows you to customize the display for the way you work

• Rugged construction for everyday field use, meeting demands in harsh environments

• One integrated gnss receiver

• One integrated camera with support for an additional external camera

• Easy transferability between vehicles


TRIMBLE® CENTERPOINT™ RTX™ CORRECTION SERVICE

• 1.5" (3.8 cm) pass-to-pass accuracy

• 1.5" (3.8 cm) repeatable accuracy


TRIMBLE RANGEPOINT™ RTX CORRECTION SERVICE

• 6" (15 cm) pass-to-pass accuracy

• 20" (50 cm) repeatable accuracy

• supports Omnistar® correction services such as HP, XP, and G2

FM-1000

The Trimble® CFX-750™ display provides key precision agriculture functionalities, including:

GUIDANCE AND MAPPING

• Coverage, point, line, and area mapping

• Manual guidance for a number of field patterns, or add hands-free guidance with the EZ-Steer, EZ-Pilot™, or Autopilot™ steering systems

PLANTING AND NUTRIENT/PEST MANAGEMENT

• Field-IQ™ crop input control capabilities, including seed monitoring, 2-product variable rate application control, boom height control, and automatic section control

HARVESTING

• Yield monitoring capabilities for grain crops, including load tracking and auto-cut width

CONNECTED FARM™

• Wireless data transfer between the field and farm office using office sync
• Data analysis and reporting with Farm Works software®

FEATURES

• Rugged construction for everyday field use
• Mid-sized 8.0” color touchscreen
• Intuitive user-interface
• 27 built-in led lights
• Two video camera inputs
• One built-in, dual-frequency gps receiver
• Glonass ready
